Siphon All stainless steel Model EH
Siphon All stainless steel Model EH
Applications
- Siphons are used mainly to protect pressure instruments, gauges, switches and transmitters directly coming in contact with high temperature process fluids or vapours
- These are mounted between process and pressure instrument
- They reduce process pulsation and generate cooling effect to save the instrument
Special Features

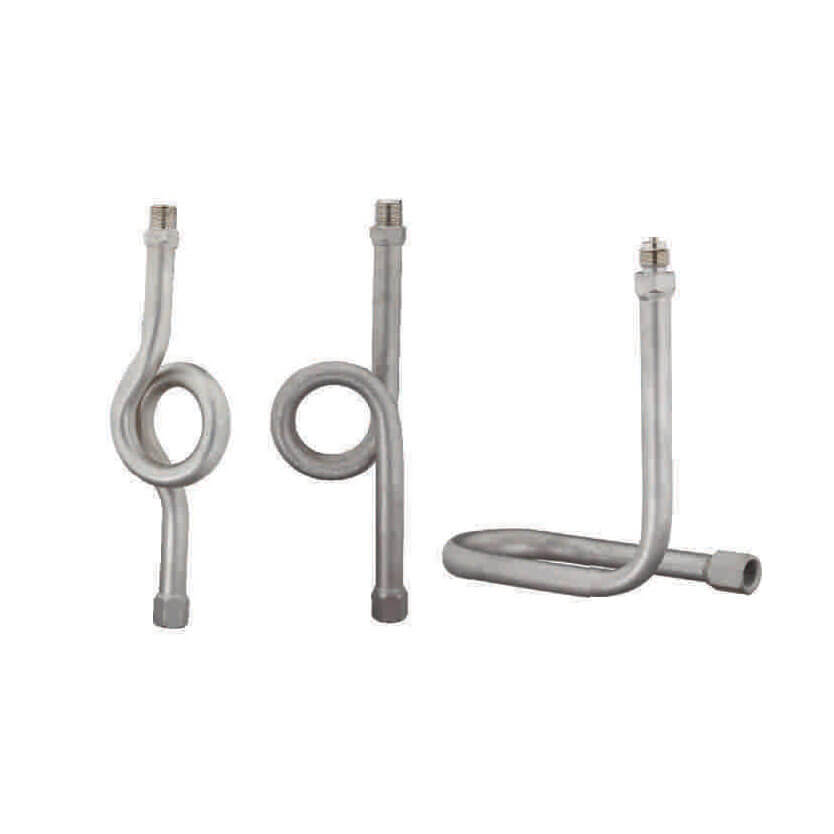

- Pigtail, Coil and “U” type shapes
- Maximum temperature up to 400 °C
- Nominal pressure up to 160 kg/cm²
- TIG welded & hydro tested
- Made with seamless pipes
