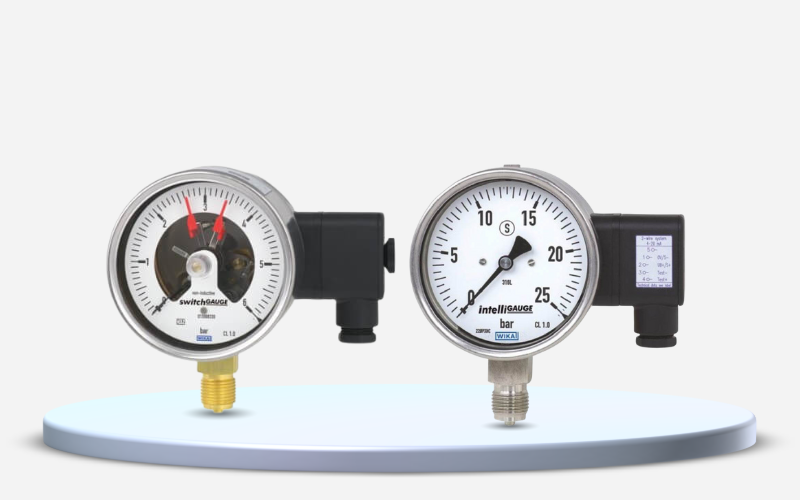

Bourdon Tube Pressure Gauge: Types, Working Principle & Industrial Applications
A Bourdon Tube Pressure Gauge is one of the most commonly used mechanical pressure measuring instruments in industrial applications. Known for its simple construction, reliability, and cost-effectiveness, it is widely used to measure medium to high pressure in liquids and gases.
At Jayantilal Bros, we are trusted Bourdon Tube Pressure Gauge suppliers, offering a wide range of gauges suitable for diverse industrial environments.
What Is a Bourdon Tube Pressure Gauge?
A Bourdon tube pressure gauge works on the principle of elastic deformation. When pressure is applied inside the tube, it tends to straighten, and this movement is transmitted through a mechanical linkage to a pointer, indicating pressure on a calibrated dial.
The Bourdon tube is typically made from copper alloy, brass, phosphor bronze, or stainless steel, depending on the application.
Types of Bourdon Tube Pressure Gauges
Bourdon Tube Type Gauges
C Type Bourdon Tube
The C type Bourdon tube is the most widely used design. It is shaped like the letter “C” and is ideal for low to medium pressure ranges.
1. Advantages of C Type Bourdon Tube:
- High accuracy and repeatability
- Simple and rugged construction
- Suitable for most industrial applications
- Easy maintenance
2. Key Variants Available
- Bourdon Tube Pressure Gauge
- Bourdon Tube Pressure Gauges
- Bourdon Tube Gauge
- Bourdon Tube Type Pressure Gauge
These gauges are available in different dial sizes, pressure ranges, and mounting options such as bottom connection and back connection.
3. Applications of Bourdon Tube Pressure Gauges
Bourdon tube gauges are widely used across industries due to their versatility:
- Hydraulic and pneumatic systems
- Oil & gas pipelines
- Chemical and petrochemical plants
- Power generation units
- Compressors and pumps
- Water treatment plants
- Boilers and HVAC systems
4. Why Choose Bourdon Tube Pressure Gauges?
- Mechanical operation – no power required
- Suitable for high-pressure measurement
- Long service life
- Cost-effective solution
- Reliable performance in harsh environments
These benefits make Bourdon tube pressure gauges a preferred choice in industrial pressure measurement.
Why Buy from Jayantilal Bros?
Why Buy from Jayantilal Bros?
As experienced Bourdon Tube Pressure Gauge suppliers, Jayantilal Bros offers:
- Wide range of industrial Bourdon tube gauges
- Multiple pressure ranges and materials
- Proven quality and consistent accuracy
- Technical guidance for correct selection
- Prompt service and reliable support
How to Choose the Right Bourdon Tube Pressure Gauge
When selecting a Bourdon tube pressure gauge, consider:
- Pressure range and media type
- Operating temperature
- Required accuracy
- Dial size and readability
- Mounting and connection type
- Environmental conditions (vibration, corrosion)
Choosing the correct Bourdon tube type ensures accurate measurement and longer gauge life.
Get in Touch
Looking for reliable Bourdon Tube Pressure Gauges for your industrial application?
Contact Jayantilal Bros today for expert assistance and high-quality pressure measuring solutions.
